IPT Global Well Integrity Assurance

This article provides an overview of viewing IPT Global’s well integrity applications within the RigFlow application.

What is IPT Global?


IPT Global provides tools and services for well integrity test planning and execution through SureTec, their test planning and execution product and SureView, their cloud-based application which provides remote viewing of active tests, in addition to providing integrity test data organization, retrieval, and analysis.

Active tests can now be viewed directly in RigFlow. The visual integration of well integrity testing into RigFlow streamlines operations by providing direct access to necessary information, progress, and results. This allows you to execute plan's in RigFlow whilst monitoring IPT assurance software on a single screen without switching platforms.

Where can you find IPT in RigFlow?

To access IPT within RigFlow, follow these steps:

  1. Open the IPT icon: Navigate to the Right sidebar and click on the ipt_logo.png IPT icon to open the interface.

  2. Access the IPT interface: Sign in using SSO or a token. For more information, refer to how to get SSO or token working.

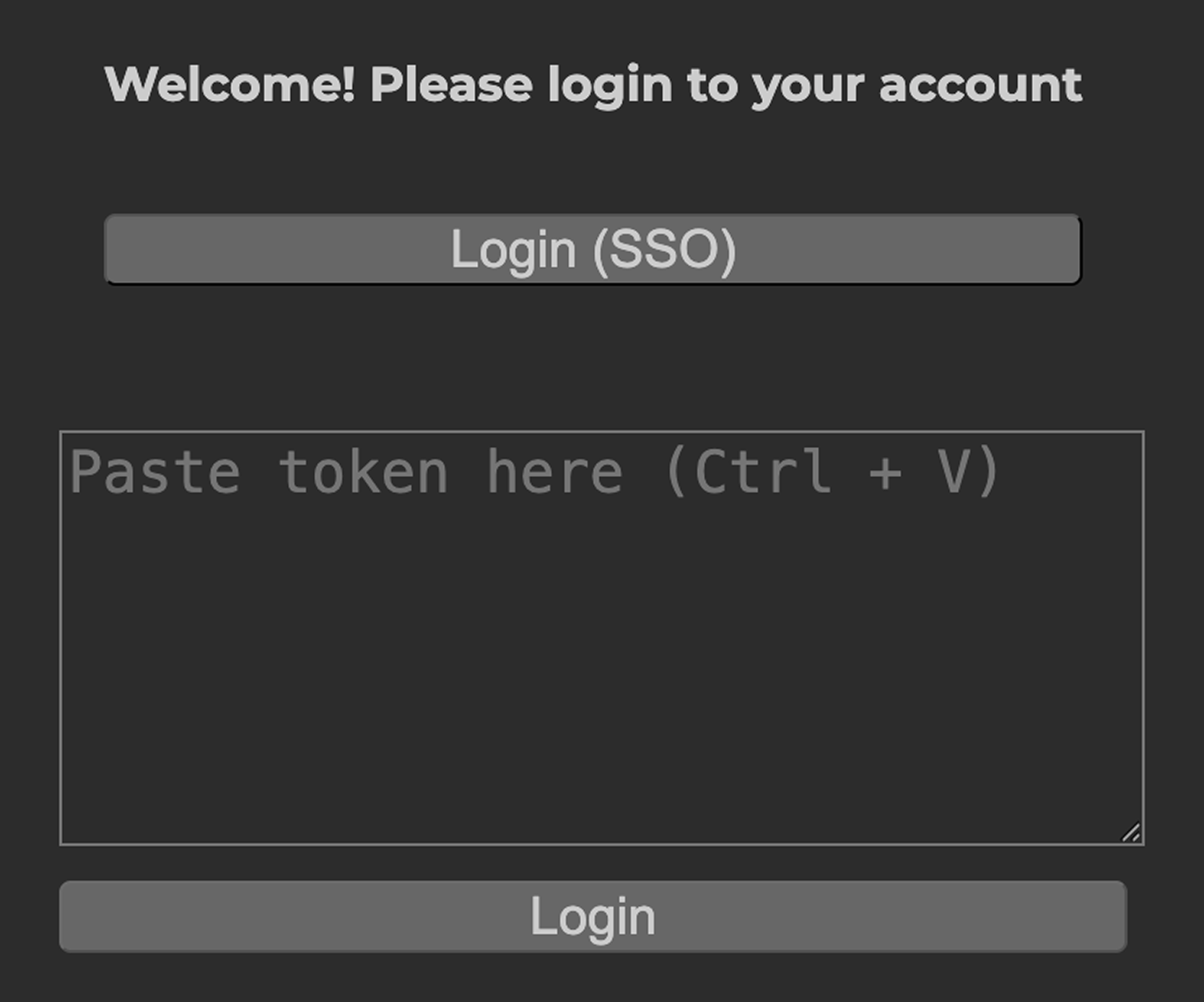

  3. Log in using access tokens: On the login screen, you will see a text box labeled for the token. Paste your access token into this box and click the Login button below the text box to continue.

    Note

    Depending on your environment settings, some users might be automatically redirected to the i-frame content after clicking on the IPT icon on the Right sidebar.

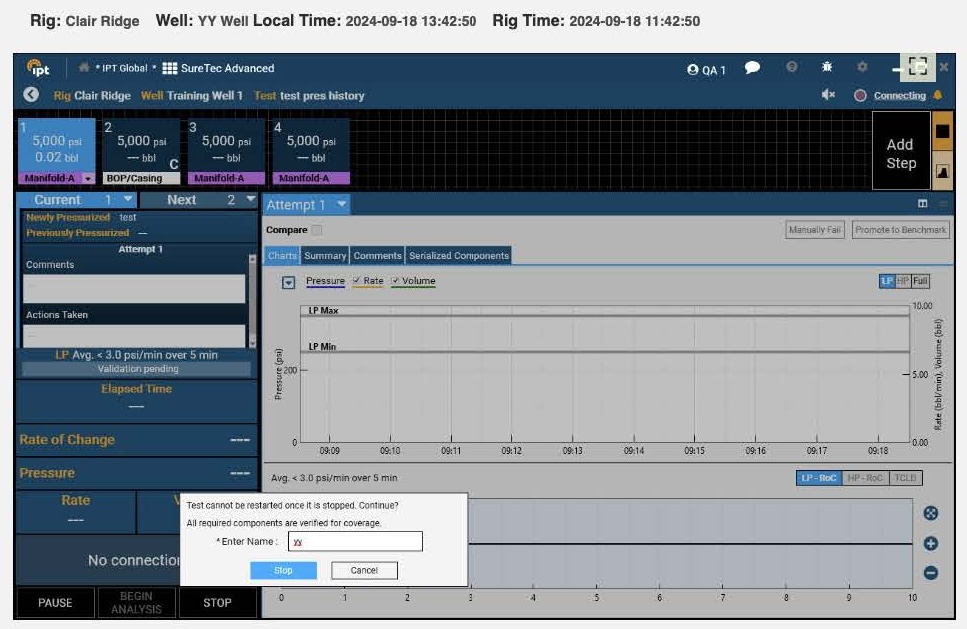

  4. View the test data: You will now have access to Active tests inside RigFlow.

Tips and tricks

How to get SSO or Token access working

First, access to SureView requires an active SureView account. For assistance, please contact IPT Global at +1 (281) 204-2912 ext. 1.

Users can access SureView’s remote viewing in two ways, Single Sign-On (SSO) or using access Tokens. SSO is the easiest and preferred method, but it may not always be possible. Instead of SSO, IPT Global can access login Tokens.

How to make the IPT view bigger

Resize the split view in RigFlow

  1. Ensure you are in the split-screen mode in RigFlow. You should see a vertical bar separating the two views. Read more about it here: Using the splitscreen on the Right sidebar

  2. Click on the drawer icon at the center of the vertical bar and drag it either to the left or to the right.

  3. This will adjust the size of the IPT view, making it larger or smaller according to your preference.

Full-screen mode

  1. Use the Full screen Full-screen mode icon, typically located in the top-right corner of the split-screen area.

  2. This will expand the IPT view to occupy the entire screen, providing a more extensive workspace.

Troubleshooting

For SSO difficulties

  • Clear browser cache and cookies.

  • Try accessing through an incognito browser session.

For Token issues

  • Ensure the Token text is complete and includes no additional characters, including training spaces or punctuation.

  • Tokens can expire. Please contact IPT Global to request an updated access Token.
