Attachments

It is often necessary to provide more detailed information about the plan from other sources (e.g., a Pipe tally or a BHA diagram). This information is relevant to different locations in the plan and should be easily accessible. You can upload and maintain your attachments under the Icon - Tab - Attachments Attachment tab on Plan Overview.

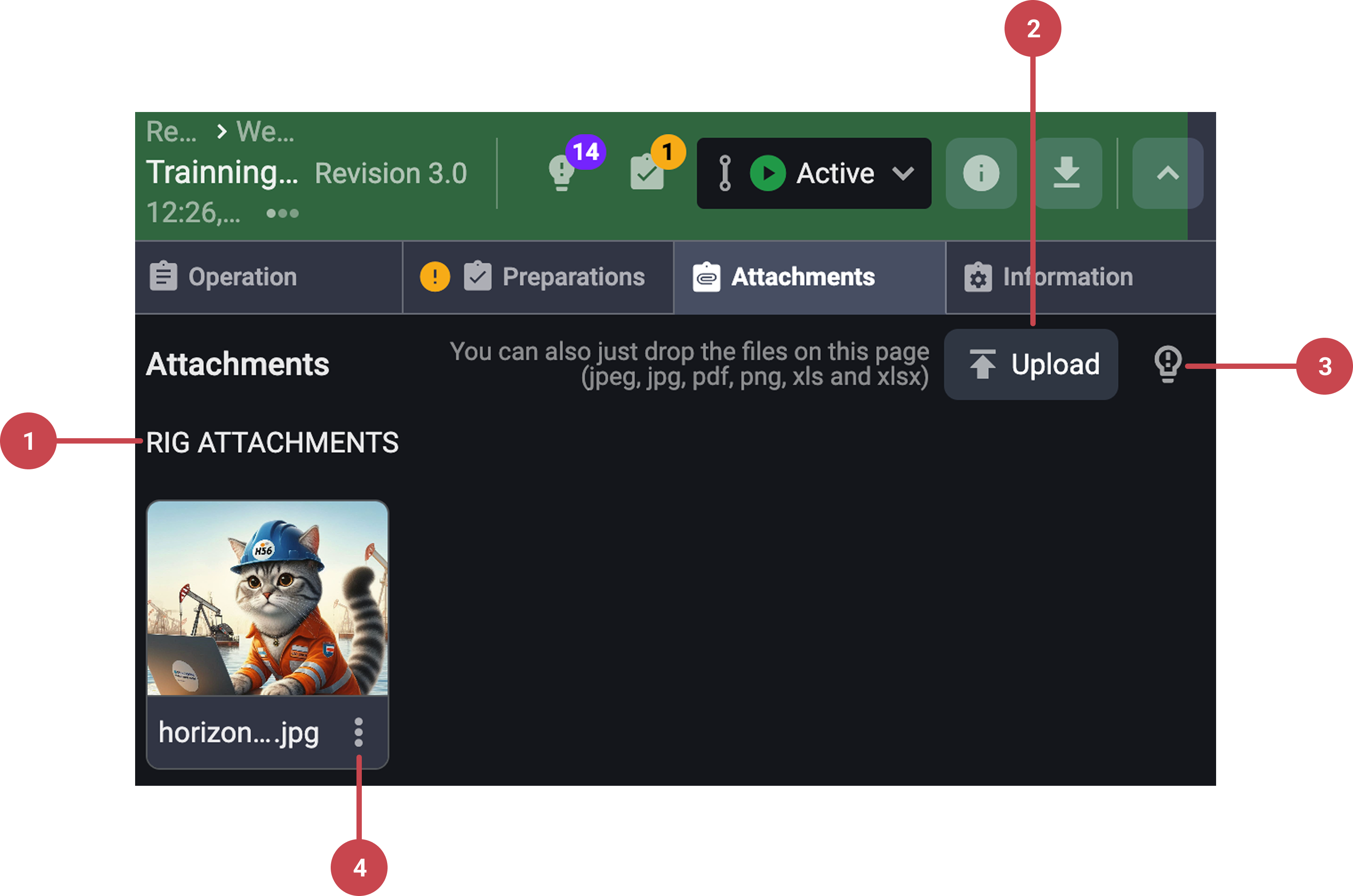

How it looks


  1. Attachment category title: Attachments in the tab are categorized based on where they were uploaded to ensure clear organization and easy identification:

    • Rig Attachments: Files uploaded directly within the Attachments tab in RigFlow.

    • Plan Attachments: Files uploaded on RigBridge (plan creation tool) and linked to the plan.

    Notice

    Plan Attachments can only be modified or deleted in RigBridge when the plan is unlocked.

  2.  Upload Upload button: Users can upload attachments directly by clicking the Upload button or dragging and dropping files into the designated area.

  3.  Insight.png Insights Tab: Allows users to add after-action reviews or any other feedback. Read more on Insights.Insights

  4.  More Attachment Actions: Menu button to display the available actions on each Rig attachment, it includes:

    • Delete.png Delete: Removes the attachment (only possible if it is not linked to any operation steps).

      Notice

      Rig Attachments can only be deleted in RigFlow by the person/role that uploaded it.

    • Comment.png Add comment: Enables adding comments or feedback to an attachment for collaboration.

    • EditFilled.png Rename: Allows the user to modify the name of the attachment.

Step-by-Step instructions

Add an attachment

  1. Open the attachment tab: Select the plan card you want to work on and go to the Attachements Attachments tab to upload, view and manage files linked to that plan.

  2. Upload an attachemement: Click the Upload upload button or drag and drop your files into the attachments area. After the upload, the file will be automatically added under rig attachments.

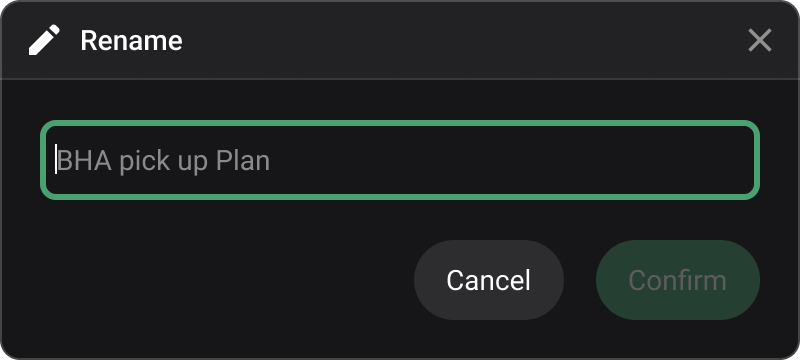

  3. Rename the attachement: Find the attachment you want to rename and click the More more menu next to the file and choose the EditFilled.png rename option. A rename window will appear, enter the new file name and click confirm to save it.


Supported files

Attachments are limited to the following files: PDF, images (jpg, jpeg, png) and Excel (xls and xlsx)

Delete an attachment

If you no longer require an attachment, you can easily remove it from the plan:

  1. Select the attachment you want to delete: On the Attachements Attachments tab within a plan, locate the attachment you wish to delete, and open the Icon - more vertical more menu.

  2. Delete the attachment: Once the menu is displayed, click the Icon - delete delete icon.

  3. Confirm delete: A modal dialogue box will appear, asking whether you wish to delete the file. Please note that this action cannot be undone. Upon clicking confirm, the file will be permanently removed.

Download an attachment

  1. Select an attachment: Open the Attachements Attachments tab within the chosen plan. Locate the file you want to download and click on the attachment to open it.

  2. Download the attachment: In the opened file view, click the Download Download icon. The file will be saved directly to your device.

Docked attachments

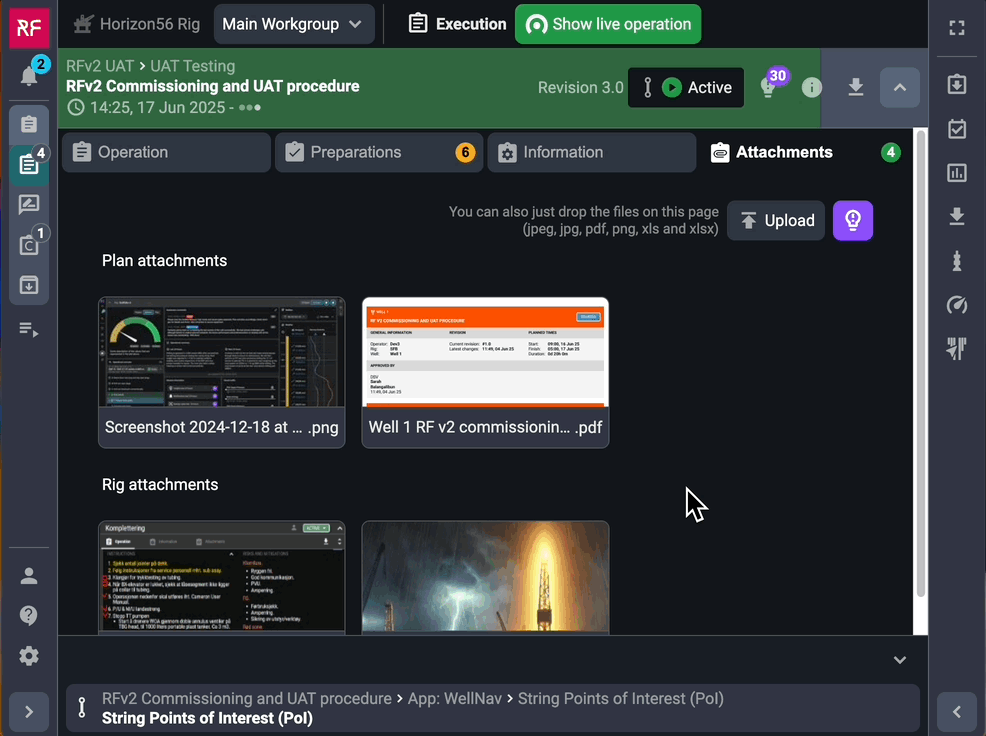

Docked attachments allow you to pin frequently used files—such as images or documents—to the Right sidebar. This feature is useful when you need to reference a file multiple times while working. Once docked, the attachment remains easily accessible within the sidebar. You can undock the attachment at any time when it's no longer needed.

  1. Go to the Attachments tab: Open the Attachements Attachments tab inside the Plan overview > Execution.

  2. Click the image under the preview column: Select the image by clicking on it; this will open a modal window with a larger preview.

  3. Click the Dock in sidepanel icon: In the top-right corner of the modal, next to the close icon, click the Dock right Dock in sidepanel icon.

  4. View the docked attachment: The selected document or image will now appear in the Right sidebar under Attachements Docked attachments.

  5. Undock the attachment: To remove the item from the sidebar, go to the Attachements Docked attachments section in the Right sidebar.

  6. Click the Release from sidepanel icon: Click the Dock left Release from sidepanel icon to undock the file; it will no longer be shown in the Right sidebar.

Limitations in Attachments

  • It's not possible to link an attachment to Preparations (checklists), Parallel activities, Report back, Operational parameters, or Risks. Attachments can be linked to the instructions under the operation tab and all fields in the information tab. The linking of an attachment can only be performed in a plan-creating tool such as RigBridge.

  • Currently, we do not offer the option to select multiple (batch) plans and download them as a package of PDFs.
