RigFlow version 1.21
The document covers the release of software updates for RigFlow. This release is primarily a release for introduction of major features, bug fixes and incremental improvements. The new features and bug fixes are outlined in the detailed release notes section.
Minor Improvements
New Total Depth column in Operation Log
The RigFlow Operation Log table view now contains a new Total Depth column to capture well depth at the end of the step. This is an optional column that can be configured by the contractor. If enabled, the viewing of this column can be toggled on/off from Column options.

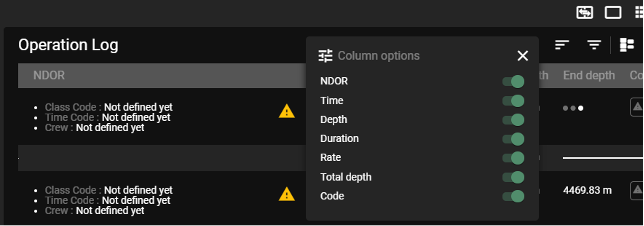

Figure 1- New column “Total depth” can be found under Column options in the Operational Log
Removed Option for Including Parallel Activities in NDOR Export
NDOR export users will no longer have the option to Include parallel activities.

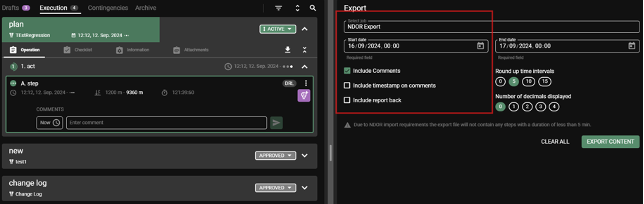

Figure 2- ‘Include Parallel activities’ options no longer available in NDOR export
Steps Set to N/A Shown as Strikethrough in PDF Print
When a step has been set to N/A, it will appear as strikethrough in the PDF print.

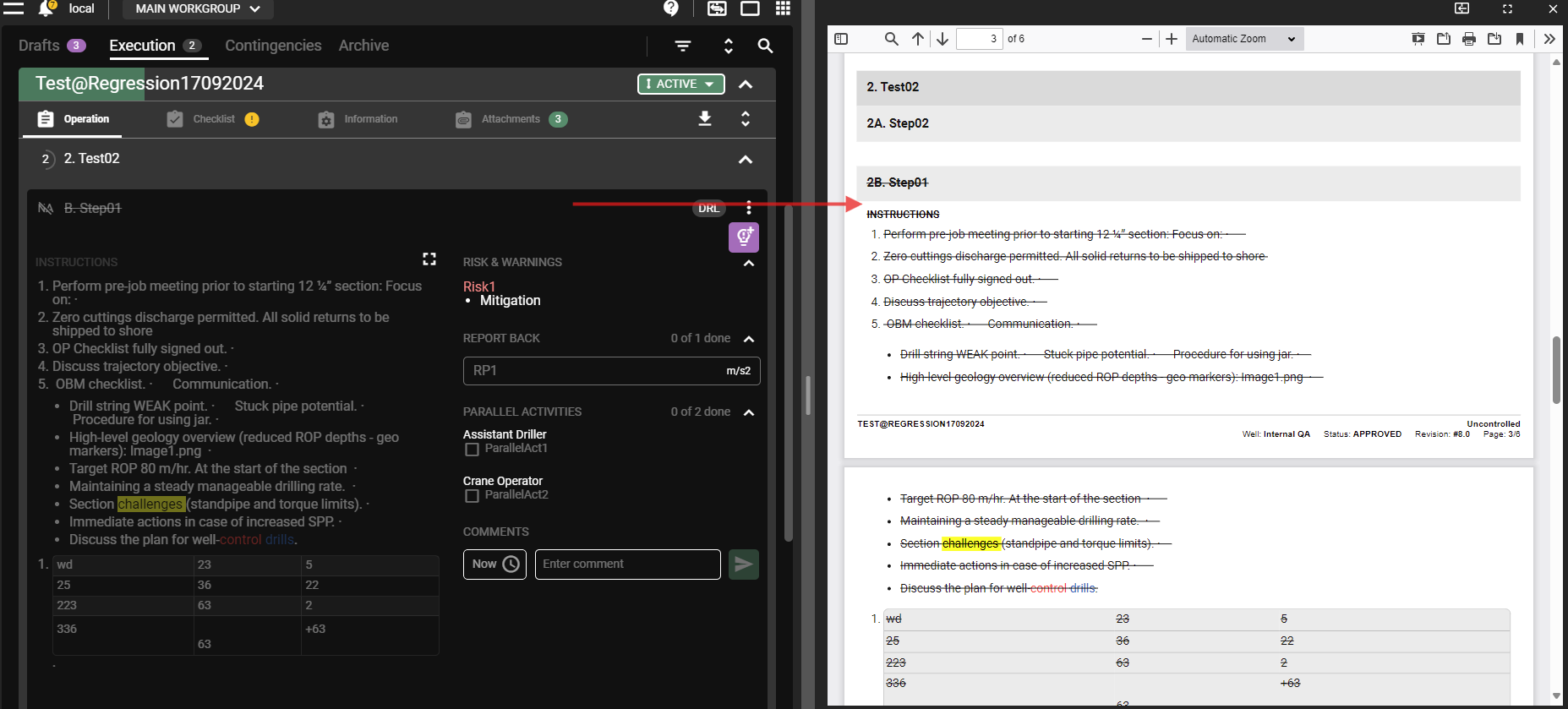

Figure 3- Steps set as N/A shown as strikethrough in PDF
Bug Fixes
NDOR Sub Codes
Customers with the NDOR feature were unable to locate a specific sub code that contained letters in addition to numbers (e.g., 11.8.a). This is now rectified.
NDOR Measured Depth
During NDOR export, the 'Measured Depth' value was sometimes blank. This issue has now been fixed to ensure that the Measured Depth value is populated consistently during every export.
